  ZJGH100 Detailed parameter

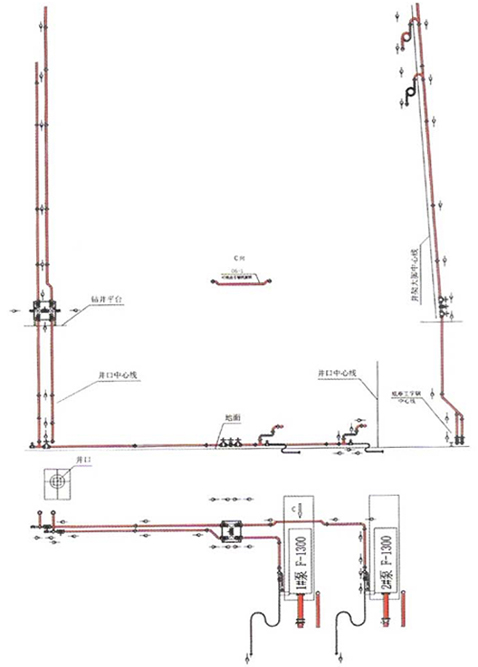

  ZJG100/35  drilling  fluid  manifold  consists  of  Z23Y100-5000PSl  &  Z23Y50-5000PSmnd  valve , high-pressure  spherical  union ,  high-pressure  cone  union , tee . High-pressure  hose . elbow . Pressure  gauge . And  pup  joint etc .

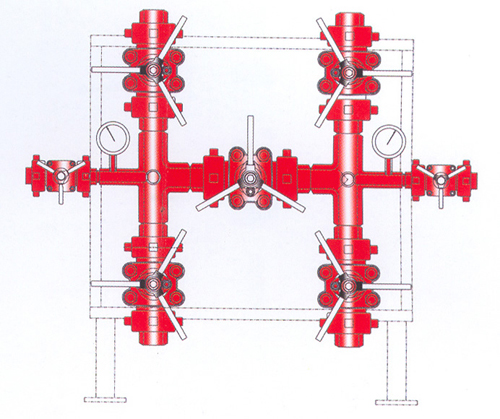

  Ground  valve - group  adopts  goose  type  tee  with  compact  structure . Little  fluid  resistance  and  large  power  effectuality .
  Adaptor  spool  adopted  on  rigid  valve-group  can  be  directly  used  as  single  pipe  on  site .
  create  quick  strip . As  for  being  manufactured  with  special  machining  tool , it  can  create  seal  under  fine  sphere  and  core  matched  with  sealing  ring .
The  gate  and  valve  seat  of  Z23Y-5000psi  mndvalve  are  welded  with  carbide  against  erosion  and  corrosion , so  that  it  can  enlarge  the  working  life . And  reduce  operating  torque .
        Elbow ,  adaptor ,  tee  and  cross  are  made  of  high-strength  alloy  steel , with  suited  wall  thick  and  fine  heat  treatment , so  it  can  meet  the  requirement  on  strength  and  corrosion .
        The  heat  treatment , so  it  can  meet  the  requirement  on  strength  and  corrosion .
        The  part  required  at  high  precision . Should  be  machined  with special  technique  to  ensure  the  manufacture  quality , and  the  pressed  part  should  be  hydrostatic  tested  on  strength  and  sealing  property  to  ensure  the  ex-plant  quality .
Installation
1 .  First  clean  up  each  sealing  face  and sealing  groove  of  union  and  coat  it  with  grease  and  rid  of  dirt  form  the pipeline .
2. Check  whether  up  each  jointer  is  fastened  or  not .
Usage  gist  & maintenance
1.  Regularly  inject  mud gate  valve  with  grease  to  maintain  the  gate  valve ;
2.  Regularly  check  whether  all  connecting  posit on  and  fixing  bolts  are  loose ;
3.  If  leak  around  sealing  position , the  seal  should  be  replaced  immediately ;
4.  Keep  the  outer  surface  of  the manifold  clean  and  paint  it  against  rust  regularly .
Notice
Z23Y-5000PSI hard  sealing  mud  gate  valve is only used  for  pipeline  opening/closing  but  for  choke  valve  so  as  avoid  damage  against  sealing  face .
